Fastwel CPB905 3.5'' Highly Integrated SBC

CPB905 3.5'' Highly Integrated SBC

• AMD Geode LX 800 (500 MHz)
• 256 MB DDR SDRAM
• 256 MB Flash disk
• CompactFlash Type I/II socket
• USB 2.0 support, up to four devices connection
• Two Ethernet controllers
• HDD connection: up to two devices
• FBUS devices connection port
• Seven COM ports
• Low power consumption
• Shock/vibration: 50G/5G
• Operating temperature range: –40°C to +85°C


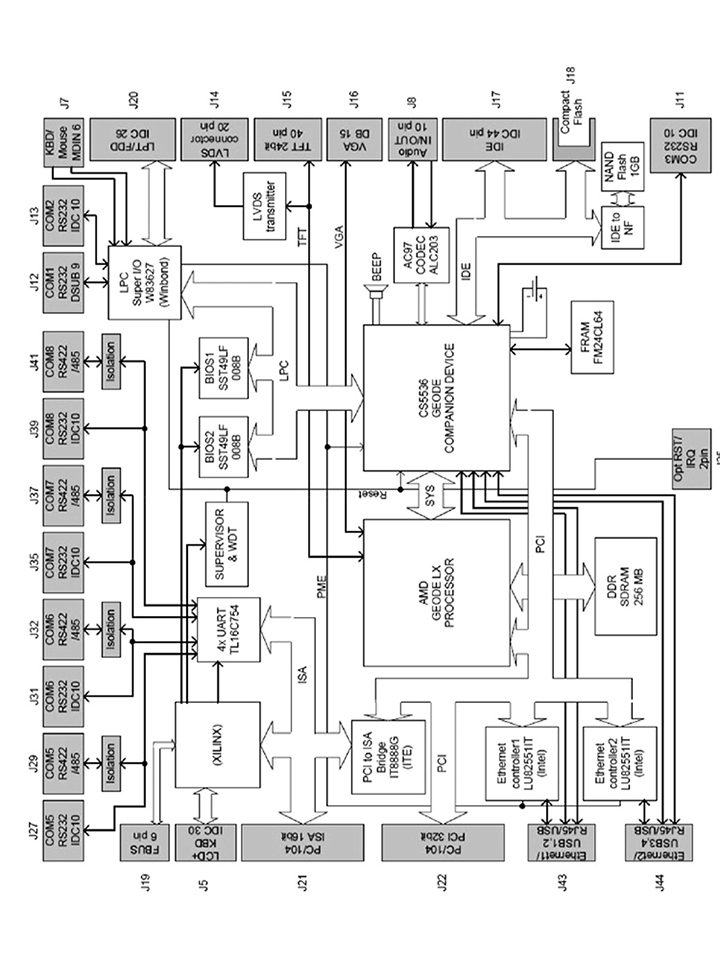

CPB905 is a 3,5" single board computer based on AMD LX800 (500 MHz) CPU

with PC\104 support (32-bit PCI and 16-bit ISA).All components, including

CPU and memory are soldered onboard thus providing high vibration resistance.

CPB905 has a rich set of interfaces: 2 Fast Ethernet ports, 7 COM ports (4 optoisolated),

4 USB 2.0 ports, supports video output on monitors with CRT, TFT, LVDS interfaces

with resolution up to 1920×1440 pixels. Power consumption of CPB905 module is just

6W, which makes it a perfect solution for systems with passive cooling. CPB905

operates in industrial temperature (–40...+85°C) and supports Linux, Windows XP Embedded, QNX.

System	• CPU: AMD Geode LX 800 (500 MHz): 32-bit x86 kernel, 64-bit coprocessor, 64-bit memory bus; 64 KB L1, 128 KB L2; MMX®, 3Dnow!™ technologies support • 256 MB DDR SDRAM • MTBF: 120 000 hours
BIOS	Flash BIOS • General® Software • 2×1024 KB, reserved • In-system modification
Graphics	• Video controller: 2D accelerator, video memory up to 60 MB (shared with system) • LCD (TFT or DSTN) panels support, resolution up to 1024×768 at 60 Hz, 24-bit color depth via TFT and LVDS interface • RGB monitor support, resolution up to 1600×1200 at 85 Hz or 1920×1440 at 75 Hz, 32-bit
Storage	• Flash disk: 1GB, soldered, IDE interface • CompactFlash Type I/II socket • HDD connection: one primary chan nel (Parallel ATA), up to two devices connection, UltraDMA/100 support
Software support	• FreeDOS • QNX 6.5.0, QNX 4.25 • Windows XPе • Linux 2.6
Interfaces	• Two Ethernet controllers, 10/100 Mb/s • USB 2.0 support, up to four devices connection • Shared HDD controller and universal parallel port with EPP and ECP support share one connector • Serial ports: • COM1, COM2: RS-232, full control, up to 230 Kb/s • COM3: RS-232, TX/RX console, up to 230 Kb/s • COM5-COM8: RS-232, full control, up to 230 Kb/s, or isolated RS-422/ RS485 up to 921 Kb/s • Audio controller: AC-97 compatible stereo line input/output, microphone input • PS/2: keyboard and mouse port • FBUS devices connection port • LCD display and matrix keyboard socket • External PME signal use: awakens a sleeping system in response to an external wake-up signal • CMOS+SFRAM for storage of configuration parameters • RTC with lithium battery • Opto-isolated reset/interrupt • Two watchdog timers: one programmable timer, one hardware based timer with fixed timeout period
Mechanical	• Dimensions: 108×149,7×40,1 mm • Weight: 0.3 kg
Power requirements	• 5 V ± 5%, 1.2 A Environmental conditions • Operating temperature range: –40°C to +85°C • Storage temperature range: –55°C to +85°C • Humidity: 0% to 95%, non-condensing • Shock/vibration: 50G/5G
Warranty	• 3 years for parts and labor
List of deliverables	• CPB905 module • Ribbon cable for 2.5" HDD connection, 44 threads • Adapter for 3.5" HDD and CDROM drive connection • IDC10-DB9 adapter cable for connection of a console to COM port • CD with software and documentation • Package
