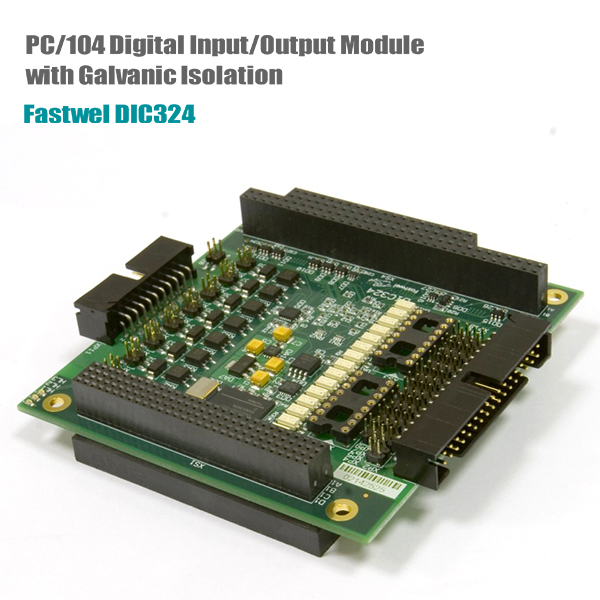

Fastwel DIC324 PC/104 Digital Input/Output Module with Galvanic Isolation

• 8-bit system ISA bus;

• 16x digital input channels;

• 8x digital output channels;

• Input signal delay: 25 µs;

• Frequency measurement per any channel (up to 30 KHz);

• Optoisolation of inputs/outputs between channels: 500V;

• Optoisolation of inputs/outputs between the channel and earth: 1000V;

• Module power supply: Power can be fed via PC104 connectors.

Power consumption does not exceed 160mA;

• Mechanical characteristics: Single shock/multiple shock resistance: 100 g/50 g;

• Software compatibility: FDOS, FreeDOS; Windows XP (Embedded), Linux 2.6.

The module is implemented in PC\104+ format. These modules are used for interfacing the boards with optical isolation digital and analog modules (optical isolation modules), measurement of frequency (duration) and phases of signals, carrying out of computing and timer operations, acceleration of logical and arithmetic operations, generation of PWM signals, conversion of codes, control of alphanumeric indicators, generation of time control diagrams and hardware event interrupts at inputs. The module uses field-programmable gate arrays (hereinafter referred to as the FPGA) and the In-System Programmable (hereinafter referred to as the ISP) technology, which enable changing algorithm of module operation directly in the system, without switching off the power supply.

System bus • 8-bit ISA-bus •3× graphics kernels • 6 MB cache Digital input • 16× digital/frequency input channels • Single-wire or two-wire connection of signals • Output voltages ±3.2 V ...±52 V Digital output •8× digital output channels • Single-wire or two-wire connection of signals • Switched output voltages/currents 60 V / 500 mA (using a differential type of load connection) LED • Indication of queries (addresses) Main features • Delay of input signals 25 μs • Measuring frequencies over any channel • Optical isolation of inputs/outputs between the channels 500 V • Optical isolation of inputs/outputs between the channel and “earth” 1000 V •Programmable time interval for de-bouncing at inputs Additional features • Five separable lines of IRQx hardware interrupts (where x = 3, 4, 5, 6, 7)

• Upper limit of enabling input channels is determined by the installed sets of registers Industrial temperature range • From –40°C to +85°C Power supply and current consumption • +5 V ±5%, no more than 160 mA Dimensions • No more than 100 × 96 × 24 mm Module weight • No more than 0,09 kg Software compatibility • FDOS • FreeDOS Resistance to electrostatic discharge • ±4 kV for contact discharge and ±8 kV for air discharge Resistance to mechanical stress • Sinusoidal vibrations for frequencies from 10 to 500 Hz: with acceleration no more than 5 g • Single shocks with duration of 11 ms with a peak acceleration no more than 100 g • Multiple shocks with duration of 6 ms with a peak acceleration of no more than 50 g Humidity • Up to 80%, no condensation MTBF • No less than 710 000 hours

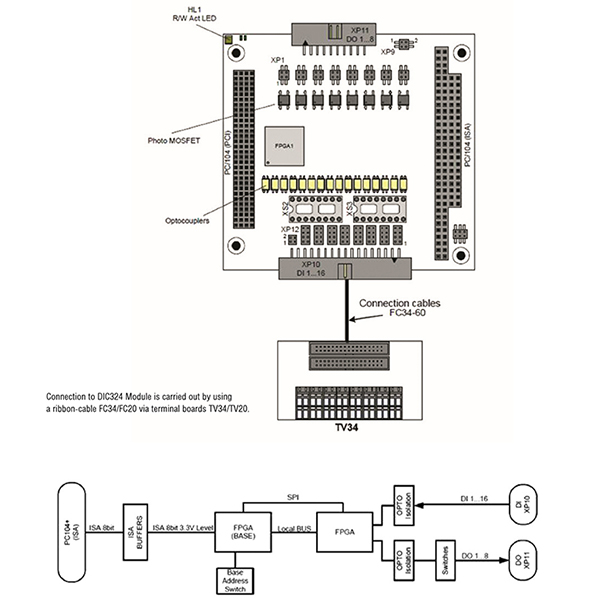

The module’s board layout contains main functional elements

• FPGA (BASE) – system FPGA Xilinx XC6SLX4-2CSG225I

• FPGA1 – user FPGS Xilinx XC6SLX4-2CSG225I

• PC104+ (ISA) – edge connector of ISA bus 8 bit

• Digital_Inputs (DI) – digital input connector (XP10)

• Digital_Outputs (DO) – digital output connector (XP11)

• OPTO Isolation – represents output buffers with galvanic insulation

• Switches – keys for load switching

Configuration of Fastwel DIC324

01 Standard version

Options

\Coated Conformal coating

Delivery checklist:

DIC324 delivery checklist contains:

1. DIC324 Digital I/O Module with a galvanic insulation

2. Packaging

3. Resistive assembly 470 Ohm 2 pieces

Additional accessories:

1. ACS00001 – Cable type FC-20, outlet IDC-20/Outlet IDC-20, length 600 mm

2. ACS00003 – Cable type FC-34, outlet IDC-34/Outlet IDC-34, length 600 mm

3. TIB96401 – Terminal board, 20 pins (TV20) 4. TIB96601 – Terminal board, 34 pins (TV34)
