Fastwel KIC550 3U CPCI Storage Module

Brand: Fastwel
Model name: KIC550
Type: Storage Module
Product description: KIC550 is a 3U CompactPCI Serial interface expansion module designed to enhance functionality of CPC506 processor module or other processor modules conforming to PICMG 2.30 or Compact PCI Serial speci
INQUIRY

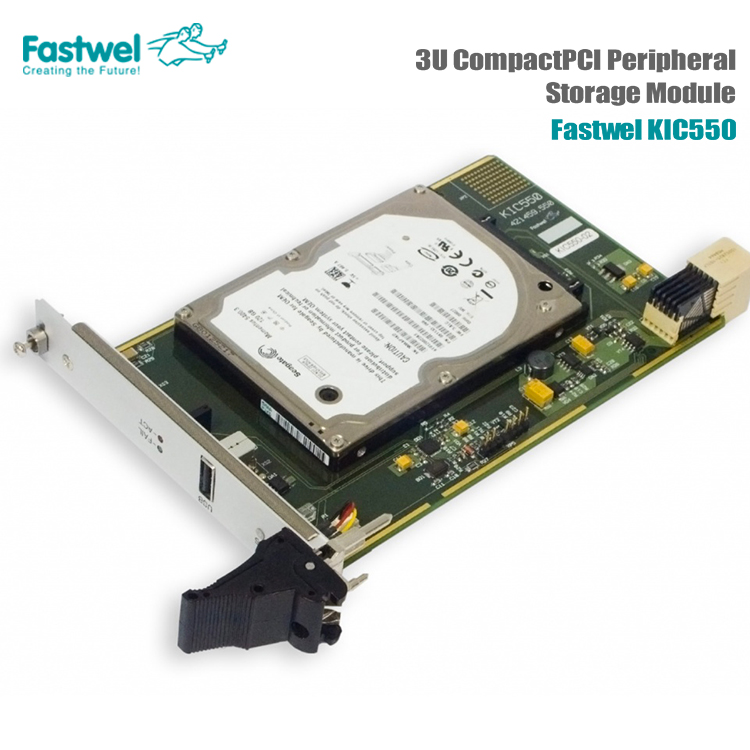

Fastwel KIC550 3U CompactPCI Peripheral Storage Module for Connection of 2.5" HDD

•    Compliance with PICMG 2.30 and PICMG S.0 standards
•    Place for mounting a 2.5" disk with SATA interface
•    USB 2.0 at the front panel or USB 3.0 via on-board connector
•    Operating temperature: –40°C to +85°C (IEC 68-2-14-84)

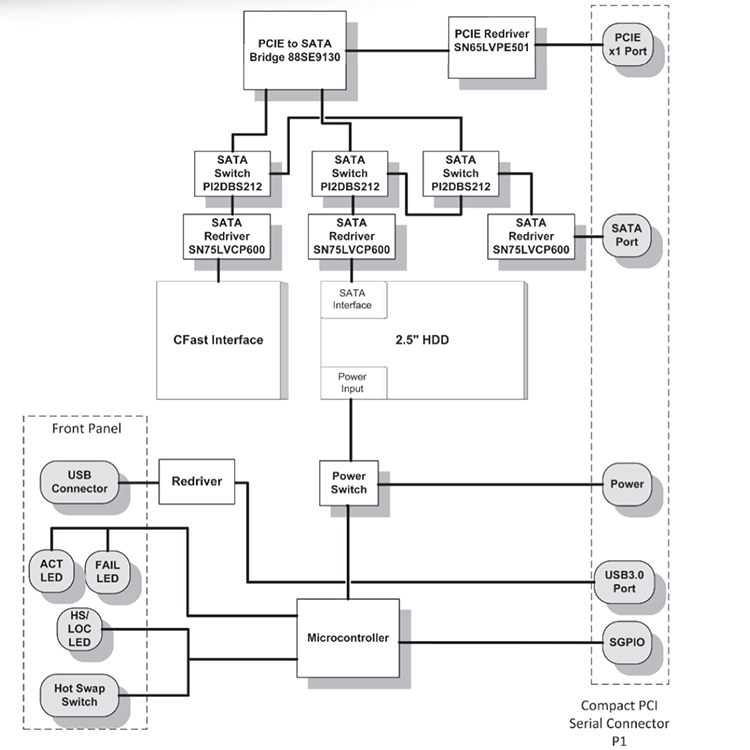

KIC550 is a 3U CompactPCI Serial interface expansion module designed to enhance functionality of CPC506 processor module or other processor modules conforming to PICMG 2.30 or Compact PCI Serial specifications. Using this module allows to build full-fledged high-performance reliable computing systems.

• Adapter for mounting SATA 2.5” Storage

Carrier

• Supports SATA and SATA II storage carriers, overall size: 100x70x9.5 mm (2.5”);

• Supports operation in RAID; Supports power supply control to the Storage Carrier;

• Supports SGPIO interface; storage device status indication;

• Capability of operation in slots with the support of SaTa and/or PCI Express interfaces.

• USB 3.0 port

• USB 3.0 specification;

• Overload protection;

• Rooted to front panel.

• CFast interface

• Complies with the CFast Revision 1.1 specification;

• Rooted to the front panel;

• Capability of operation in slots with the support of SATA and/or PCI Express interfaces.

• Indication

• Storage Carrier status indicators;

• Hot swap mode indicator

• Additional capabilities

• Intra-module RAID support (RAID 0 and RAID 1);

• HyperDuo storage devices support;

• No forced cooling required

• Supported standards

• SFF-8485 specification for serial GPIO (SGPIO) Bus;

•PICMG 2.30 RC1.0 November 11, 2009;
•PICMG CPCI-S.0 R1.0 March 2, 2011;

• CFast Specification Revision 1.1;

• Universal Serial Bus 3.0 Specification.

Rev. 1.0.

• Operating temperature:

Industrial temperature range: -40 to +85°C.

• Humidity resistance (with protective coating) at air temperature +(55±2)°C,
relative humidity (93±3)% (if the storage device complies with the specified conditions).

• Power requirements

• Power supply voltage: 12 V.

• Power consumption: 0,27 A (without Storage Carrier and USB devices)

• Shock/vibration: 100g/5g (this value is specified for the module without storage devices installed).

• MTBF: No less than 1000000 h.

• Weight: No more than 135 g.

• Dimension: 130,6x213,0x20,3 mm.

Available options: \COATED - damp-proof coating
KIC550 Configuration
KIC550 - 01 KIC550 (-40°C to +85°C) —o o o

Available Options
\COATED - damp-proof coating
Delivery checklist:

KIC550 Delivery checklist includes:
- KIC550 module - 1 pcs;
- Installation kit (screw: 4 pcs) for Storage Carrier - 1 pcs;
- Package.

Additional accessories
The Storage Carrier is ordered as an extra.
