Fastwel VIM554 3U CPCI AV Input Module

Product description: VIM554 Audio/Video Input Module is implemented in CPCI-S.0 3U standard with support of rear I/O modules. The module is designed for reception of standard definition analog video signals (SDTV) and voi
INQUIRY

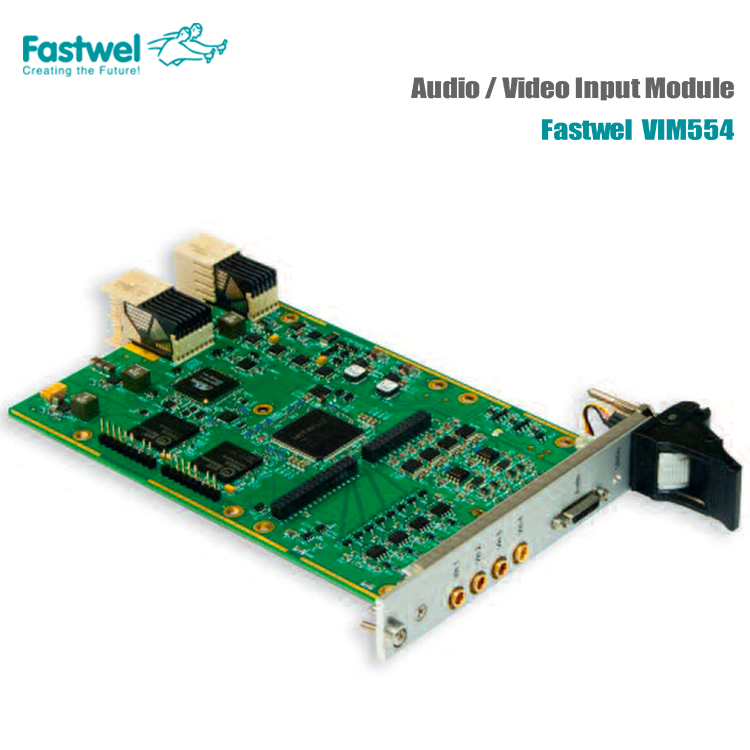

Fastwel VIM554 3U CompactPCI Audio / Video Input Module

■ Form-factor: PICMG CPCI-S.0 R1.0 CompactPCI® Serial Specification 3U;
■ System bus: PCI Express x4;
■ LED-indication of module’s operation modes;
■ Power supply: Supplying voltage: +12.0 V, consumed current: no more than 0.8 A;
■ Vibration resistance: 5g;
■ Single/multiple shock resistance: 100g/50g;
■ Dimensions: No more than 130.5 mm x 213.0 mm x 20.32 mm (WxDxH);
■ Weight: VIM554-01-R1: 320 g, VIM554-02-R1: 380 g;
■ Operating temperature range: Industrial version: from -40°C to +85°C;
■ MTBF: 100 000 hours;
■ OS: Windows 7 (Embedded) 32/64 bit; Linux 3.2.0.

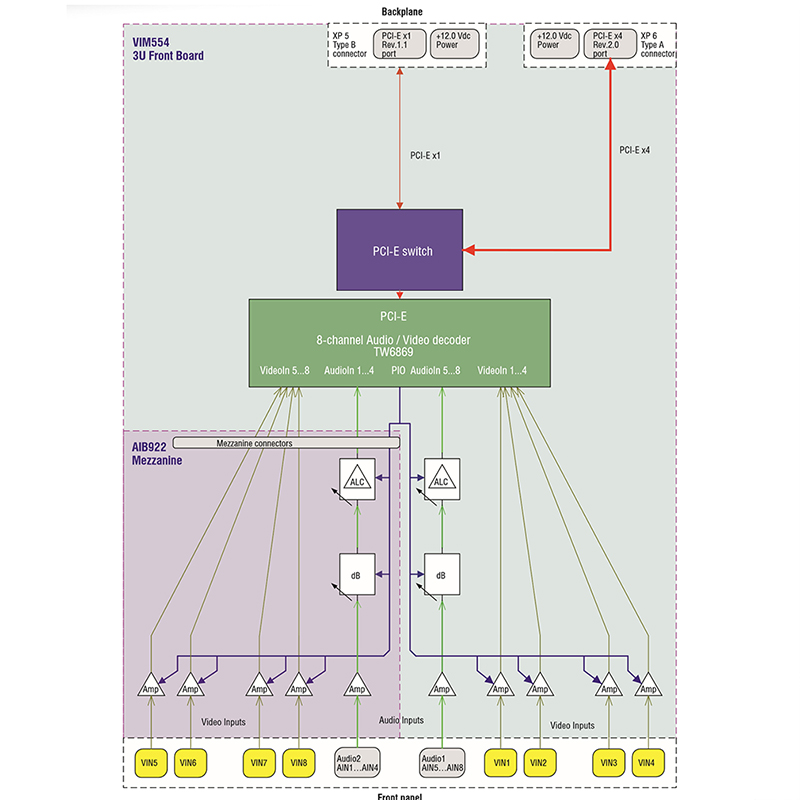

VIM554 Audio/Video Input Module is implemented in CPCI-S.0 3U standard with support of rear I/O modules.

The module is designed for reception of standard definition analog video signals (SDTV) and voice audio signals, their conversion to digital form and their entry into PC system memory.

Form-factor
PICMG CPCI-S.0 R1.0 CompactPCI® Serial Specification 3U.

System bus

PCI Express x4.

LED-indication
• LED-indication of module’s operation modes.

Software monitor
• Overheating protection (module disconnection).

Video path
• For VIM554-01 version: 4x channels;
• For VIM554-02 version: 8x channels;
• Video signal standard: PAL (B, D, G, H, I, M, N), SECAM, NTSC;
• Video signal type: composite (CVBS);

• Connector type and characteristic impedance:

MCX (slot), 75 Ohm;
• Input resistance: 75 Ohm;
• Video input type - AC-coupled;
• Video input accepted level: 0.5 Vh 2.0 V (peak-to-peak amplitude);
• Anti-aliasing filters: yes;
• Input speed per each channel: 25/30 frames per second depending on the video signal standard;
• Output frame format: up to D1;
• Video decoder: TW6869.

Audio path
• For VIM554-01 version: 4x channels (mono);
• For VIM554-02 version: 8x channels (mono);

• Type of audio sources: active microphones, amplifiers, sound cards;

• Power supply of active microphones:
+12.0 V/45.0 mA;
• Bandwidth:12 KHz (using the level -3 dB);
• Input stage type: differential;

• Input resistance - No less than 47 KOhm (f=1 KHz);

• Input signal level: up to 2.0 V (root-mean-square value);
• Sampling rate: 8/16/32/44.1/48 KHz;
• Retrieval capacity: 8/16 bit;
• Input stage overload protection: yes;
• Audio decoder: TW6869.

Power supply
• Supplying voltage: +12.0 V;
• Consumed current: no more than 0.8 A.

Resistance to mechanical impact
• Vibration, acceleration amplitude -no more than 5g;
• Single shocks, peak acceleration -no more than 100 g;
• Multiple shocks, peak acceleration -no more than 50 g.

MTBF
• No less than: 100 000 hours.

Weight
• VIM554-01 -R1 — no more than 320 g;
• VIM554-02-R1 — no more than 380 g.

Dimensions
• No more than 130.5 mm x 213.0 mm x 20.32 mm (WxDxH).
Operating temperature range
• Industrial version: from -40°C to +85°C.

Humidity
• Up to 80%, non-condensing.
Resistance to cyclic damp heat in case of lacquer coating
• At the ambient temperature of (+55±2)°C and relative humidity of (93±3)%.

OS compatibility
• Windows 7 (Embedded), 32/64 bit;
• Linux 3.2.0.

VIM554 Configuration
VIM554-01/VIM554-02

Versions:
- VIM554-01 -R1: 4x audio (mono) and 4x video hannels, Weight: no more than 320 g;
- VIM554-02-R1: 8x audio (mono) and 8x video channels, Weight: no more than 380 g.

Options
Conformal coating.

Delivery checklist
1. VIM554 Audio / Video Input Module;
2. Package.
