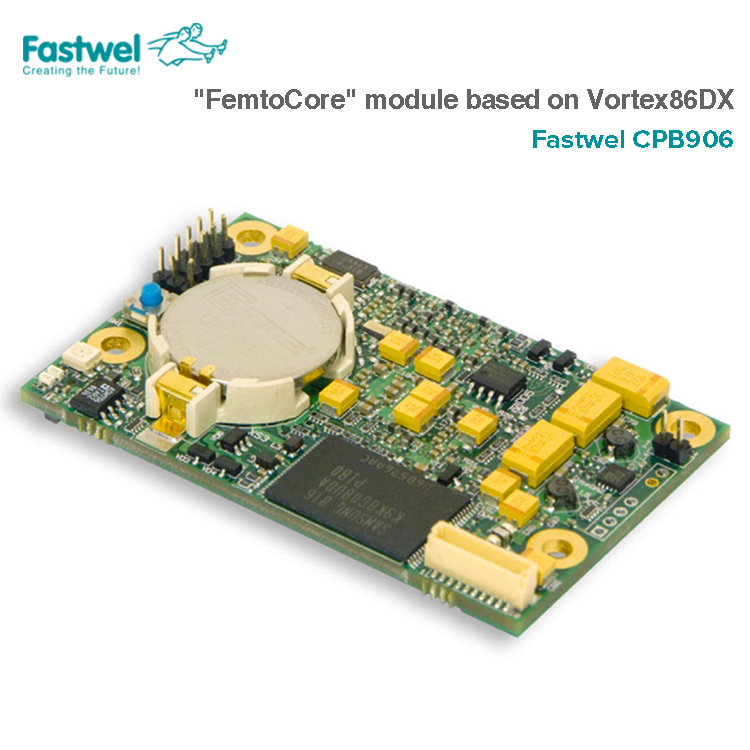

Fastwel CPB906 "FemtoCore" module based on Vortex86DX

•    Vortex86DX processor 600 MHz
•    256 MB DDR2 SDRAM
•    10/100 Mbit/s Fast Ethernet
•    32-bit PCI, 8-bit ISA, LPC
•    Two USB 2.0
•    IDE interface (alternative 2×SDIO)
•    Two RS-232, PS/2
•    Eight digital I/O ports
•    Industrial operating temperature range: –40°C to +85°C

Fastwel CPB906 is a Computer Module designed for use as a computing core in application specific embedded systems.

Fastwel CPB906 is based on x86 code compatible CPU - Vortex86DX running at 600 MHz and addressing 256 MB DDR2 SDRAM.

CPB906 has just a 65×40 mm footprint (57% of credit card size). It is so far the smallest x86 Computer-on-Module,

which is a perfect choice for space constrained applications.

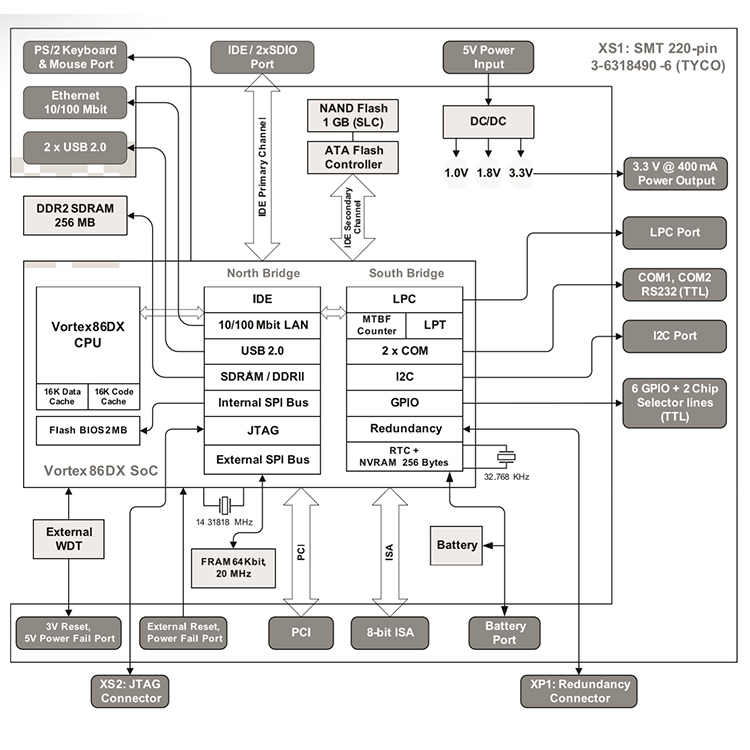

All basic interfaces are routed to the highdensity 220-contact bottom-side connector for installation on a customized

carrier board bearing standard interface connectors.

Fastwel custom design division offers development of application specific embedded systems based on CPB906 computer

module.

Fastwel CPB906 supports DOS, Windows CE 5.0, Linux 2.6 and QNX 6.3 operating systems.

Configurations

CPB90601 Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 128 MB FFD, PCI, ISA, Ethernet 10/100 Mb/s, 1 LPC, 1 IDE / 2 SDIO, 2 USB 2.0,

2 RS232 (TTL), 8 discrete I/O channels (GPIO), –40…+85°C.

Options

COATED Protective coating

Example

CPB90601\COATED

Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 128 MB FFD, PCI, ISA, Ethernet 10/100 Mb/s, 1 LPC, 1 IDE / 2 SDIO, 2 USB 2.0, 2 RS232 (TTL),

8 discrete I/O channels (GPIO), 40…+85°C Protective coating.

Accessories for CPB906

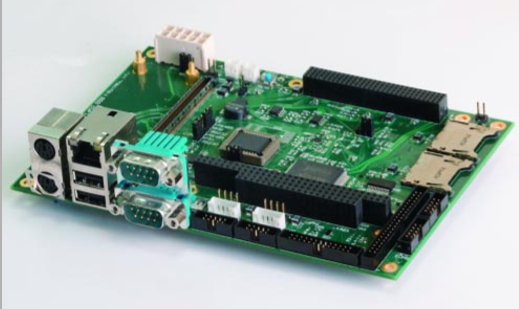

KIB880

EPIC carrier board for CPB906 processor module

Overview

KIB880 is a development board for CPB906 processor module, designed especially to provide a quick start (i.e. initial

software and hardware development and debugging) for CPB906based applications. KIB880 with CPB906 processor

module can be used as a readytouse solution for some applications.

Technical features

• Expansion modules support: PC/104 (8 bit ISA); PC/104+ (8 bit ISA, PCI)

• IDE (channel shared with SDIO port): Primary channel; Up to two devices; Ultra DMA 100 support; CompactFlash Type I/II socket

• SDIO (channel shared with IDE): MiniSD cards support; Up to two devices

• LAN: one 10/100 Mb/s Ethernet channel (MAC + PHY)

• USB: 1.1, 2.0 (HS, FS, LS) support; up to two devices

• Serial ports: СОМ1, COM2: RS232, up to 115.2 Kb/s;

СОМ1, COM2: RS422/485, up to 115.2 Kb/s, automatic data flow control signals supported; СОМ5, COM6: RS232, up to 115.2 Kb/s

• Universal parallel port: SPP, EPP, ECP modes support

• PS/2 mouse and keyboard port

• Discrete I/O ports: 8 channels via CPB906 GPIO; 8 channels via LPC SuperIO GPIO.

• Temperature sensor (I2C port)

• Console operation via COM1 serial port

• Main power supply voltage: +5 V ±5%

• Operating temperature: –40°С to +85°С

• MTBF: 170000 hours more then

• Vibration resistance: 5g

• Single shock resistance: 100g

• Multiple shock resistance: 50g

List of deliverables

• KIB880 module;

• A set of counterparts for KIB880 connectors;

• CD with software and documentation (developer's kit);

• CD with software and documentation (standard Fastwel CD);

• Consumer package

Development Kits

DVK 01: CPB906, KIB880, VIM301, FDOS

DVK 02: CPB906, KIB880, VIM301, Windows CE

DVK 03: CPB906, KIB880, VIM301, Linux
