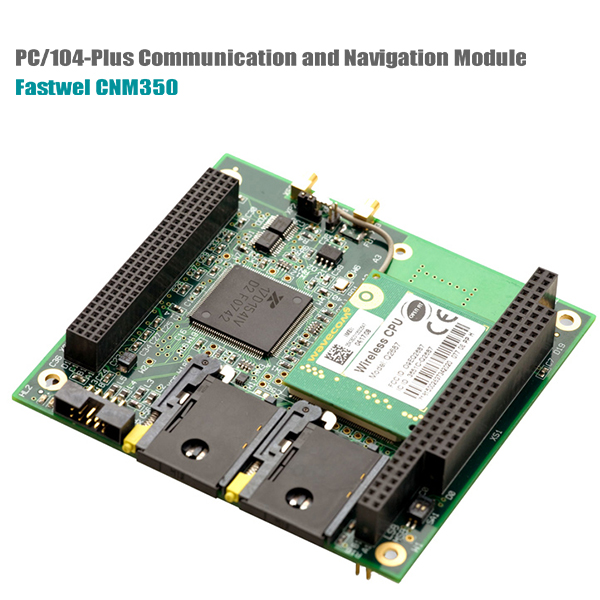

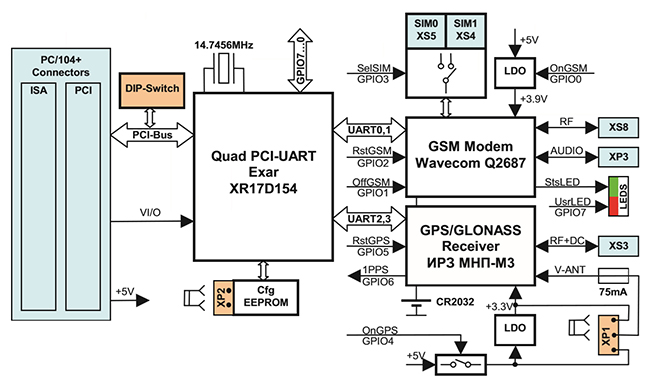

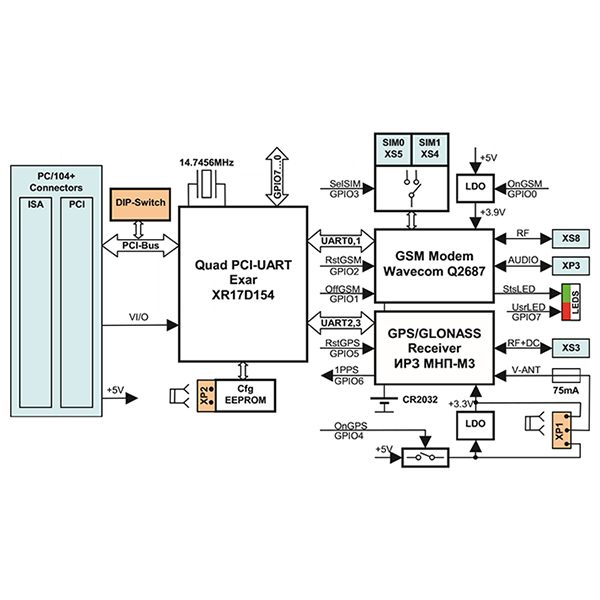

Interfaces

GPS/ GLONASS receiver:

• GPS / GLONASS receiver MNP M3:

• 16 universal channels for L1 ranges of GPS/GLONASS signals;

• Dynamic range of antenna input: 130… 100 dBm;

• Programmable navigation decisions rate: 1…10 Hz;

• Coordinates measurement accuracy: not more than 20 m (3 m using differential corrections) at speeds up to 1200 km/h;

• First navigation parameters measurement delay after cold restart: not more than 50 s;

• Connection with CPU module through two UART channels at 115.2 Kb/s using software switchable protocols: Binary, IEC 61162 1 (NMEA 0183) or RTCM SC 104;

• Software utility for obtaining the detailed information from the receiver and for its operating mode management

• Power supply voltage for an external GPS/GLONASS antenna: 5 V, 3.3 V, or passive antenna; maximal consumption current: 75 mA

• CR2032 lithium battery used as power backup for storage of almanac, satellite ephemerides, and internal clock data.

Battery life is not less than 2.5 years

• External antenna connection via MMCX\SMA adapter

GSM modem:

• GSM 850 / 900 / 1800 / 1900 MHz

• GPRS class 10

• EDGE class 1

• Audio interface:

• Loudspeaker (R > 8 ohm)

• Electret microphone

• Two SIM cards capability

• Modem operation mode LED indicator

• Antenna connection via MMCX\SMA adapter

Internal TCP/IP stack usage possibility

PC/104 Plus interface:

• 32 bit / 33 MHz Bus Target;

• Universal interface 3.3 V / 5 V;

• 8 GPIO ports are used for module's units management;

• Compatibility with 16C550;

• Compliance to PCI Local Bus Specification, revision 2.3;

• Compliance to PC/104 Plus Specification version 2.2;

• ISA bus signals are not used in the module; the connector is installed for compatibility

Control and indication:

• Two position DIP switch is used to set the module's PC/104 Plus stack position number;

• Green LED indicates the GSM modem operation mode;

• Red LED is controlled by user application;

• GSM and GPS modules can be enabled or disabled;

• Active SIM card can be selected

Software support

• QNX® 6.3x, 4.25;

• Windows® XP, XPE;

• Linux® 2.6

Mechanical

• Dimensions: 93 ×96 ×23 mm (3.60"×3.72"×0.89")

• Weight: 0.05 kg

Power

• Power (VI/O and +5V) is supplied to the module via PC/104 Plus connectors;

• Universal PCI interface allows usage of two power voltages – +3.3V ±10% or +5V ±5% with not more than 100 mA consumption;

• Consumption current for a 5V ±5% power source does not exceed the following values: CNM35001 – 1.0A rms, 2.6A peak; CNM35002 – 0.5A rms, 2.1A peak; CNM35003 – 0.6A

Environmental conditions

• Operating temperature range: –40°C to +85°C

• Storage temperature range: –55°C to +90°C

• Humidity: 0% to 80%, non condensing

• Single/multiple shock stability: up to 100G/50G

• Vibration: up to 5G

List of deliverables

• CNM350 module

• CD with software and documentation

• Package

Warranty

• 3 years for parts and labor

Coating

\Coated

Protective Coating

Operating System Presetting

\WXP

Windows XP

\XPE

Windows XP Embedded

\LNX

QNX 6.3

\LNX

Linux 2.6
