Fastwel KIC301 Interface Module in StackPC-PCI

Brand: Fastwel
Type: Interface Module
Model name: KIC301
Product description: Fastwel KIC301 Interface Module in StackPC-PCI form-factor, is implemented in StackPC-PCI format and is meant for joint use with the CPU module, supporting StackPC/PCI.
INQUIRY

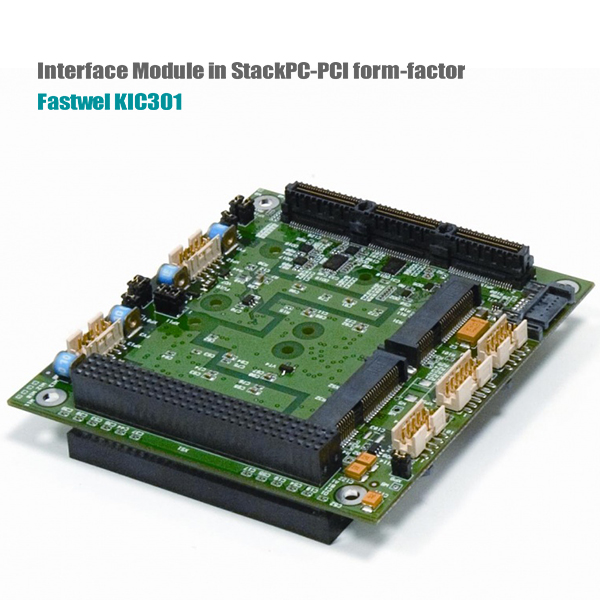

Fastwel KIC301 Interface Module in StackPC-PCI form-factor

•RS-232/485/482 interface

•PCI-104 interface

•SATA, up to 300 Mb/s

•Mini PCIe card slot

•Operating temperature range: –40°C to +85°C (IEC 68-2-14-84)

•Shock/vibration resistance: 50g/25g (IEC 68-2-27-87; IEC 68-2-6-82)

KIC301 is implemented in StackPC-PCI format and is meant for joint use with the CPU module, supporting StackPC/PCI. The module is designed for extension of its basic functions and is used for the systems operated under harsh conditions. The module is equipped with two Mini PCI Express slots for installation of additional communication equipment.

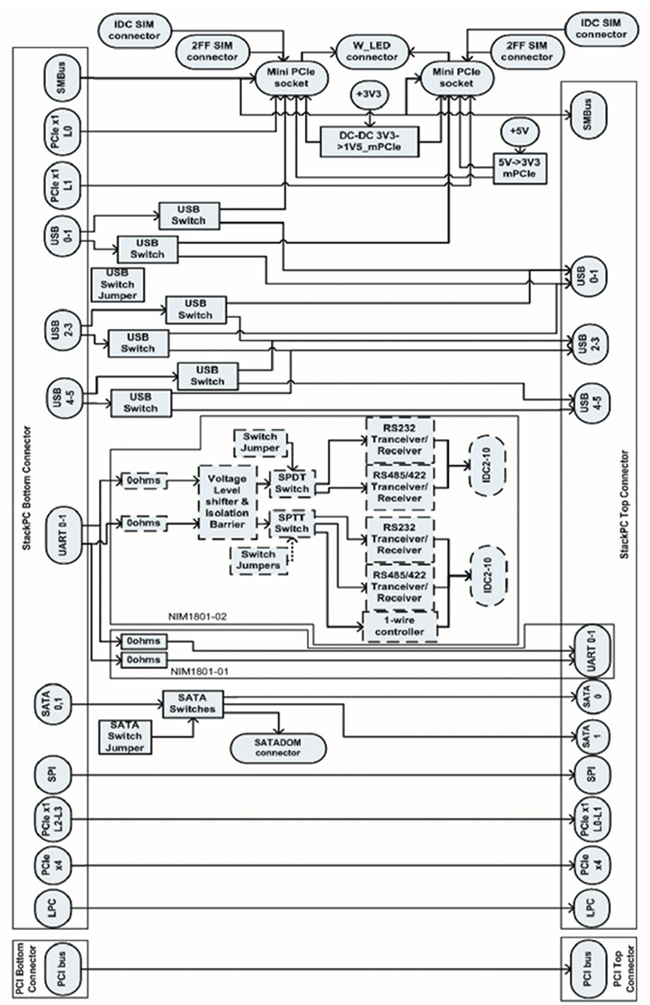

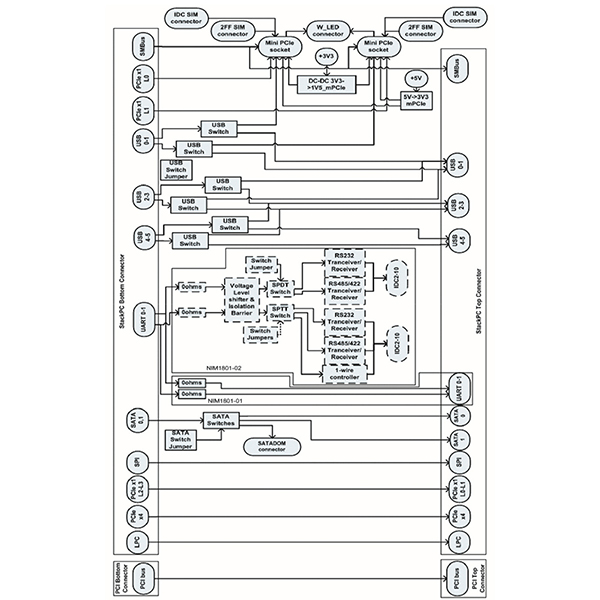

Interfaces

•PCI-104

• According to the specification requirements, the board has installed PCI-104 connector designed for the further extension of functionalities

•RS-232/485/482

• Independent selection of active interface on each of the ports

• 2x interface ports are routed to IDC2-10 connectors

• Insulation 500 W

•1-wire

• Switching between 1-wire and RS-232/485/422 is made via board jumper

•SATA interface

• Transfer rate is determined by CPU module

• 7xpin connector for a drive with SATADOM form-factor support

• SATA channel can be switched from the module to stack

•Connector for Mini PCIe card

• Installation of peripheral devices in mini PCIExpress card form-factor (rev. 1.2 compliant)

• Signals of WLAN#, WPAN#, WWAN# LEDs arerouted to a separate connector of the board

• SIM-cards can use external connectors and can be installed into board slots;

• Using jumper makes it possible to switch Mini PCIe ports not used by USB-device into the stack

Supported OS

•WinXP Embedded •Linux 2.6

Mechanical

•Resistance to multiple shocks: 50g

•Resistance to vibration: 25g

•Dimensions: 96,1×90,4×22,2 mm

•MTBF: 100 000 hours

Power

•Supply voltage: +5 V (rated consumption – 4.2 A, peak consumption: – 7 A, taking into account the maximum rated consumption of two Mini PCI-Express modules

•Internal power consumption is no more than 1W

•Internal power consumption within the circuit: +5 W, no more than 0.2 A

Environmental

•Operating temperature range: –40°C to +85°C
